FYTB30TF/VA201
Housing & Bearing
Inner Dia
30mm
Outer Dia
141.5mm
Width
34mm
Features & Details

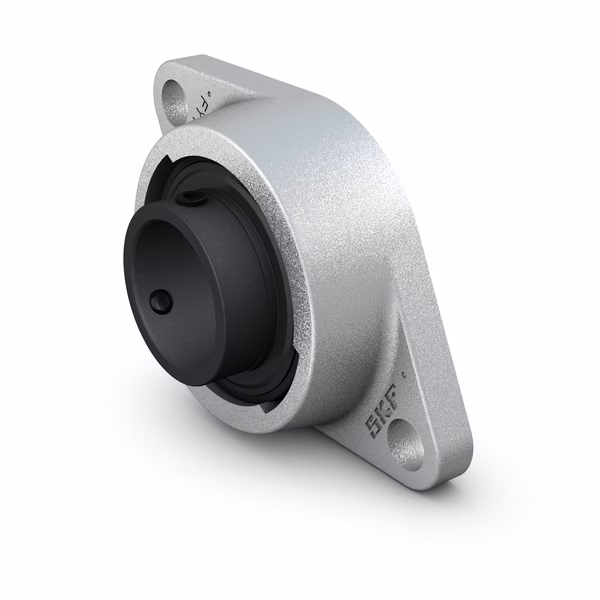

- These oval flanged ball bearing units are designed for high temperature applications and are compliant with ISO standards. They consist of a high temperature insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
| Model | FYTB30TF/VA201 |
|---|---|
| Type | Housing-&-Bearing |
| 853049/L853010 | Available |
| brand | SKF |
| Inner Diamater (mm) | 30 |
| Outer Diamater (mm) | 141.5 |
| Width (mm) | 34 |
| Inner Diamter (in) | 1.1811 |
| Outer Diamter (in) | 5.5709 |
| Width (in) | 1.3386 |
| weight | 0.853Kg |
| Condition | NEW |
